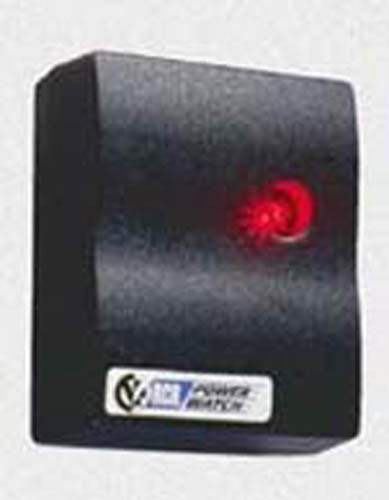

ACR POWERWATCH
ACR Voltage Disturbance Recorder 4000 event memory, optical alarm,
no exposed wiring, event viewing software
Home_power


click to download product specification

PowerWatch 120vNorth America

PowerWatch 220-240vAustralia, UK, Europe

General Product Specifications

 Memory Size
 32K, 4000 events.
 Storage Method  First- in, First - out or Fill - then - stop
 Sampling Method  Continuous (half cycle integrated).
 Alarm Type  Optical; Red LED.
 Certifications  CSA; NRTL/C; UL1244.
 Size  85 mm x 68 mm x 35 mm. (3.35" x 2.65" x 1.35").
 Weight  4 ounces (120 grams).
 Case Material  Noryl Plastic.
 Operating Limits  - 40C to 70C (-40F to 158F); 0 to 95% RH (non-condensing).
 Battery 3.6 Volt Lithium.
 Battery Life  10 year warrantee under normal use). Factory replaceable.
 Fuse  1/16A fast-blow; (non-replaceable).
 PC Requirements
IBM PC or 100% compatible running MS Windows 3.1, '95, '98, or NT, with at least
2 MB RAM, 2 MB of hard drive disk space and one free serial port.
 Event Types Detected  Surges, sags, impulses, dropouts, outages, frequency variations.
 Measurement Location  Hot to Neutral. Neutral to Ground.
 Plug Configurations  North America (120 Volt). Australia (240 Volt).

United Kingdom (240 Volt). Continental Europe (240 volt)
