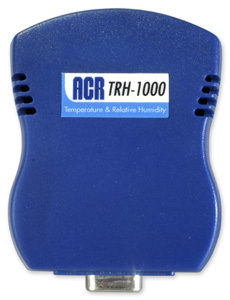

The TRH-1000 data logger is a low cost easy-to-use
temperature and relative humidity data logger.

click to download PDF






General Product Specifications
Size 25.4 x 58.4 x 81.3 mm (1" x 2.3" x 3.2")
Weight 2.6 ounce (74 grams)
Case Material Cycoloy® (GE Plastics) C120 ABS + Polycarbonate
Mounting Magnetic backing
Operating Limits -40 °C to 70 °C (-40 °F to 158 °F)
Clock Accuracy +/-2 seconds per day
Battery 3.6 volt lithium, 1 amp-hour
Battery Life Five year warranty (under normal use).
PC Requirements TrendReader Express software. PC or 100% compatible, running MSWindows3.1, '95, '98, Me, 2000, XP or NT, with a least 2 MB RAM, 10 MB of hard drive disk space and one free serial port.
Memory Size 64KB (32,000 data points per channel)
Resolution 8 Bit (1 part in 256)
Sampling Methods First in first out, stop when full, delay start, spot & average sampling
Sampling Interval 8 seconds to 34 minutes
Accessory DB9 serial 6-ft extension cable (Cat #31-0017)
